Provisioning and Managing Resources Using the CLI

The sections above present the most user friendly mode of usage, with most actions performed via the GUI. However, Chameleon can be accessed via the OpenStack command line tools which provides more capabilities. This section presents some advanced usage using the command line tools.

Tip

Reading Command Line Interface (CLI) is highly recommended before continuing on the following sections.

Blazar Client Installation

To reserve specific nodes, based on their identifier or their resource specifications, you must use the Blazar command line client. To use the CLI, you must install the python-blazarclient. To install python-blazarclient, run the following command:

pip install git+https://github.com/ChameleonCloud/python-blazarclient.git@chameleoncloud/xena

Note

To reserve VLAN segments or floating IPs, you must use a Chameleon fork of the Blazar client, as above.

Before using Blazar Client, You must configure the environment variables for your project via source the OpenStack RC Script or use the CLI switches every time you run the commands. Type blazar in your terminal session to enter the Interactive Mode. You may also use blazar in the Shell Mode.

Creating a Lease to Reserve Physical Hosts

To create a lease, use the lease-create command. The following arguments are required:

  • --reservation with the min, max, resource_type, and resource_properties attributes

  • --start-date in "YYYY-MM-DD HH:MM" format

  • --end-date in "YYYY-MM-DD HH:MM" format

  • A lease name

If --start-date is ommitted, then the current date and time will be used by default.

For example, the following command will create a lease with the name of my-first-lease and the node type of compute_skylake that starts on June 17th, 2022 at 4:00pm and ends on June 17th, 2022 at 6:00pm:

openstack reservation lease create \
  --reservation min=1,max=1,resource_type=physical:host,resource_properties='["=", "$node_type", "compute_skylake"]' \
  --start-date "2022-06-17 16:00" \
  --end-date "2022-06-17 18:00" \
  my-first-lease

Instead of specifying the node type, you may also reserve a specific node by providing it’s UUID. For example, to reserve the node with UUID of c9f98cc9-25e9-424e-8a89-002989054ec2, you may run the command similar to the following:

openstack reservation lease create \
  --reservation min=1,max=1,resource_type=physical:host,resource_properties='["=", "$uid", "c9f98cc9-25e9-424e-8a89-002989054ec2"]' \
  --start-date "2022-06-17 16:00" \
  --end-date "2022-06-17 18:00" \
  my-custom-lease

To create a lease with multiple resource properties, you must combine them like ["and", [property1], [property2], [...] ]. For example, to reserve a node with $architecture.smt_size of 48 and node_type of compute_haswell:

openstack reservation lease create \
  --reservation min=1,max=1,resource_type=physical:host,resource_properties='["and", ["=", "$architecture.smt_size", "48"], ["=", "$node_type", "compute_haswell"]]' \
  --start-date "2022-06-17 16:00" \
  --end-date "2022-06-17 18:00" \
  my-custom-lease

Attention

To specify a before_end action, simply add before_end=<action_type> to reservation parameter. For example:

openstack reservation lease create \
  --reservation min=1,max=1,resource_type=physical:host,resource_properties='["=", "$uid", "c9f98cc9-25e9-424e-8a89-002989054ec2"]',before_end=email \
  --start-date "2022-06-17 16:00" \
  --end-date "2022-06-17 18:00" \
  my-custom-lease

Currently supported before_end action types include

Action Type

Description

email

Send an email notification.

default

Default action used when no action is specified; Currently set to email.

''

Do nothing.

The default before_end action is set to email. To disable the email notification, set before_end=''.

Actually, you may use any resource property that is in the resource registry to reserve the nodes. To see the list of properties of nodes, first get the full list of nodes with the command:

openstack reservation host list

The output should look like:

+------+--------------------------------------+-------+-----------+----------+
| id   | hypervisor_hostname                  | vcpus | memory_mb | local_gb |
+------+--------------------------------------+-------+-----------+----------+
| 151  | 00401ba8-4fb0-4f1e-a7dc-e93065ebdd15 |    24 |    128000 |      200 |
| 233  | 004c89fa-ff13-4563-9012-f2d62c1a7aff |    24 |    128000 |      200 |
| 330  | 01029fb8-0a0b-4949-92b0-a756fb8588e5 |    24 |    128000 |      200 |
| 146  | 036b16e3-9fa6-442c-8e6d-cfe12ed5c8a3 |    24 |    128000 |      200 |
| 992  | 05dd5e25-440f-4492-b3b8-9d39af83b8bc |     8 |      3200 |      100 |
| 219  | 066d92f5-7cb9-49ea-8f05-842566672ebf |    24 |    128000 |      200 |
| 3216 | 06b164d5-3514-4ebe-8928-0bd2f9508b80 |     0 |         0 |        0 |
| 156  | 07030786-d6e8-46b4-b0f2-79b0b303b518 |    24 |    128000 |      200 |
| 212  | 07051549-c404-44af-8e73-8beb5891864a |    24 |    128000 |      200 |
| 175  | 07fd65f0-b814-429b-a2fb-3a4afa52de41 |    24 |    128000 |      200 |
| 255  | 081d2cb1-b6b5-4014-b226-7a42d8588307 |    24 |    128000 |      200 |

To get resource properties of a host, run host-show command with the id listed in the first column. For example, to get the resource properties of the host 151, run:

openstack reservation host show 151

The output should look like:

+----------------------------------+---------------------------------------------+
| Field                            | Value                                       |
+----------------------------------+---------------------------------------------+
| architecture.platform_type       | x86_64                                      |
| architecture.smp_size            | 2                                           |
| architecture.smt_size            | 48                                          |
| bios.release_date                | 03/09/2022                                  |
| bios.vendor                      | Dell Inc.                                   |
| bios.version                     | 1.2                                         |
| chassis.manufacturer             | Dell Inc.                                   |
| chassis.name                     | PowerEdge R630                              |
| chassis.serial                   | 4VJGD42                                     |
| cpu_info                         | baremetal cpu                               |
| created_at                       | 2022-06-26 20:50:58                         |
| gpu.gpu                          | False                                       |
| hypervisor_hostname              | 00401ba8-4fb0-4f1e-a7dc-e93065ebdd15        |
| hypervisor_type                  | ironic                                      |
| hypervisor_version               | 1                                           |
| id                               | 151                                         |
| uid                              | c9f98cc9-25e9-424e-8a89-002989054ec2        |
| updated_at                       |                                             |
| vcpus                            | 48                                          |
| version                          | 78dbf26565cf24050718674dcf322331fab8ead5    |
+----------------------------------+---------------------------------------------+

Any of the property listed in the field column may be used to reserve the nodes. For example, you can use resource_properties='["=", "$architecture.smp_size", "2"]' to reserve a node with two physical processors.

Note

Remember to use $ in front of the property.

Extending a Lease

To extend your lease, use lease-update command, and provide time duration via --prolong-for switch. The format of the duration is a number followed by a letter specifying the time unit. w is for weeks, d is for days and h is for hours. For example, if you would like to extend the my-first-lease by one day, run the following command:

openstack reservation lease update --prolong-for "1d" my-first-lease

Chameleon Node Types

The following node types are reservable on Chameleon.

Node Type

resource_properties='["=", "$node_type", "<Chameleon node type name>"]'

Skylake compute nodes

compute_skylake

Storage nodes

storage

Haswell Infiniband nodes

compute_haswell_ib

Storage Hierarchy nodes

storage_hierarchy

NVIDIA K80 nodes

gpu_k80

NVIDIA M40 nodes

gpu_m40

NVIDIA P100 nodes

gpu_p100

NVIDIA P100 NVLink nodes

gpu_p100_nvlink

NVIDIA RTX 6000 nodes

gpu_rtx_6000

FPGA nodes

fpga

Low power Xeon nodes

lowpower_xeon

Atom nodes

atom

ARM64 nodes

arm64

Creating a Lease to Reserve a VLAN Segment

To create a lease, use the lease-create command. The following arguments are required:

  • --reservation with the resource_type and network_name attributes

  • --start-date in "YYYY-MM-DD HH:MM" format

  • --end-date in "YYYY-MM-DD HH:MM" format

  • A lease name

Optional attributes include network_description and resource_properties which can both be added to the --reservation argument.

For example, the following command will create a lease with the name of my-first-vlan-lease and the network name my-network that starts on June 17th, 2022 at 4:00pm and ends on June 17th, 2022 at 6:00pm:

openstack reservation lease create --reservation resource_type=network,network_name="my-network" --start-date "2022-06-17 16:00" --end-date "2022-06-17 18:00" my-first-vlan-lease

Adding the network_description attribute provides its value as the description field when creating the Neutron network for advanced networking configurations.

openstack reservation lease create --reservation resource_type=network,network_name="my-network",network_description="OFController=${OF_CONTROLLER_IP}:${OF_CONTROLLER_PORT}" --start-date "2022-06-17 16:00" --end-date "2022-06-17 18:00" my-first-vlan-lease

Adding the resource_properties attribute allows you to reserve a specific network segment or physical network type. There are currently only two physical network types physnet1 and exogeni. You can read more about both types in Networking. The following two examples show how to reserve a network by segment_id or physical_network.

openstack reservation lease create --reservation resource_type=network,network_name=my-network,resource_properties='["==","$segment_id","3501"]' --start-date "2022-06-17 16:00" --end-date "2022-06-17 18:00" my-first-vlan-lease

openstack reservation lease create --reservation resource_type=network,network_name=my-network,resource_properties='["==","$physical_network","physnet1"]' --start-date "2022-06-17 16:00" --end-date "2022-06-17 18:00" my-first-vlan-lease

While separate leases can be created to reserve nodes and VLAN segments, it is also possible to combine multiple reservations within a single lease. The following example creates a lease reserving one Skylake compute node and one VLAN segment:

openstack reservation lease create --reservation min=1,max=1,resource_type=physical:host,resource_properties='["=", "$node_type", "compute_skylake"]' --reservation resource_type=network,network_name="my-network" --start-date "2022-06-17 16:00" --end-date "2022-06-17 18:00" my-combined-lease

Creating a Lease to Reserve Floating IPs

To create a lease, use the lease-create command. The following arguments are required:

  • --reservation with the resource_type and network_id attributes

  • --start-date in "YYYY-MM-DD HH:MM" format

  • --end-date in "YYYY-MM-DD HH:MM" format

  • A lease name

Multiple floating IPs can be reserved using the amount attribute. If ommitted, only one floating IP is reserved.

For example, the following command will create a lease with the name of my-first-fip-lease that starts on June 17th, 2022 at 4:00pm and ends on June 17th, 2022 at 6:00pm and reserves three floating IPs:

pip install python-openstackclient
PUBLIC_NETWORK_ID=$(openstack network show public -c id -f value)
openstack reservation lease create --reservation resource_type=virtual:floatingip,network_id=${PUBLIC_NETWORK_ID},amount=3 --start-date "2022-06-17 16:00" --end-date "2022-06-17 18:00" my-first-fip-lease

Reallocating a Node in Your Lease

After creating your lease, you can view its details in the Horizon web interface. On this page, at the bottom, you can see a list of nodes in your lease. If you wish to reallocate one of the nodes in your lease, you can press the red “Re-Allocate Host” button next to it.

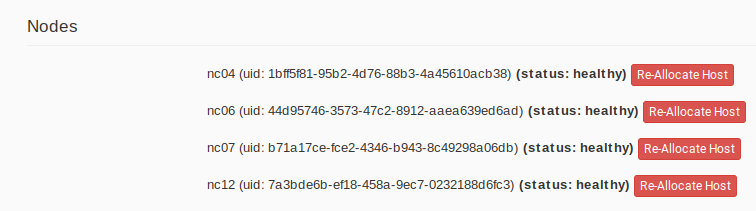

The re-allocate buttons on the lease detail page

The nodes on the lease detail page.

You can also do the same on the command-line. Run the command that follows, entering your lease ID and the node ID where appropriate.

openstack reservation host reallocate --lease-id LEASE_ID NODE_ID

If you re-allocate a host because it is malfunctioning, please make sure to report it to the Help Desk so that we can fix it.
