Getting Started

Welcome to the Chameleon testbed! We’re excited you’re here.

In this guide, we walk through the core steps of using Chameleon resources: discovering hardware, making a reservation, configuring your instance, and connecting to it.

Not sure what Chameleon is? Read our about page before continuing.

Attention

Before you begin, make sure you have the following:

A Chameleon user account — see our federated authentication guide to create one
Membership in an active Chameleon project — see our project guide to create a project or join an existing one

Project setup can take time due to review and approval processes. Complete these steps before continuing with this guide.

At the end of this tutorial, you’ll have learned how to:

Find resources using the Hardware Discovery page and check lease availability via the Resource Calendars
Make advanced reservations for Chameleon resources
Configure, launch, and connect to an instance running on a bare metal server
Orchestrate a Chameleon experiment using Jupyter and python-chi (advanced — see our companion guide )

Table of Contents

Ready to launch your first instance on a Chameleon bare metal node? In this guide, we’ll use the graphical user interface (GUI) on the Chameleon portal. You can head there now in a separate browser window (https://chameleoncloud.org).

Once you’ve completed this guide, our companion guide walks through the same steps using Jupyter and python-chi, Chameleon’s Python library for programmatic experiment orchestration.

Important

Bare metal instances are physical servers that you have exclusive access to during your reservation. This is different from virtualized clouds, where multiple users share the same physical hardware through virtualization technologies. Chameleon’s bare metal approach provides users with direct access to the underlying hardware, allowing for greater customization, performance, and power monitoring. Chameleon offers bare metal reservations at CHI@TACC (Austin, TX), CHI@UC (Chicago, IL), and CHI@NCAR (Boulder, CO).

Chameleon also offers a multi-tenant, virtualized cloud via KVM@TACC (see KVM) and container-based edge computing via CHI@Edge (docs). See our blog for a guide on choosing between bare metal and virtualized instances.

Pick Your Hardware 

Open Hardware Discovery →

We’ll start at the Hardware Discovery page on the Chameleon Portal, where you can filter our bare metal nodes across all CHI sites using dozens of fields (including GPU configuration, memory, RAM, CPUs, etc.). You can also view detailed specifications for each node, including CPU, memory, storage, and networking.

We have our hardware pre-selected for this guide, so we’ll skip most of the hardware discovery details for now. See Resource Discovery for a full walkthrough of the discovery tools.

Important

Chameleon resources are available per site, which means you must select the correct site to access specific hardware.

The main Chameleon Infrastructure (CHI) sites are:

Texas Advanced Computing Center (TACC): Austin, TX — CHI@TACC
University of Chicago (UC): Chicago, IL — CHI@UC
National Center for Atmospheric Research (NCAR): Boulder, CO — CHI@NCAR

For example, the GPU v100 node is only available at CHI@UC. Always confirm which site hosts your preferred hardware before making a reservation.

For this guide we’ll use Compute Cascadelake R nodes, available at both CHI@UC and CHI@TACC. They’re plentiful and typically reservable on demand, which makes them a good choice for a first experiment. You can follow the same steps below to get started with any bare metal hardware on Chameleon – as a challenge, try following this guide with a different node that you find on the Hardware Discovery page.

My First Reservation: Reserving a Node 

On Chameleon, you must reserve your resources before you can launch an instance on them. Chameleon supports both on-demand and advanced reservations. We will use an on-demand reservation for this guide, but note that you can reserve resources in advance, which is often necessary to get access to popular, scarce hardware like GPUs.

Step 1: Access a Testbed Site 

As mentioned above, different Chameleon sites have different hardware. To log in to a Chameleon site from the main Chameleon portal page, click on the Experiment tab on the nav bar at the top. From the dropdown, select a Chameleon site. We will be working with nodes available in either CHI@UC or CHI@TACC, so you can select one of those.

../_images/experiment-dropdown.png — Select a site to use.

When you access one of the sites, you are first taken to an overview page, which shows a summary of your resource usage for your current project and site. The dashboard will appear as below:

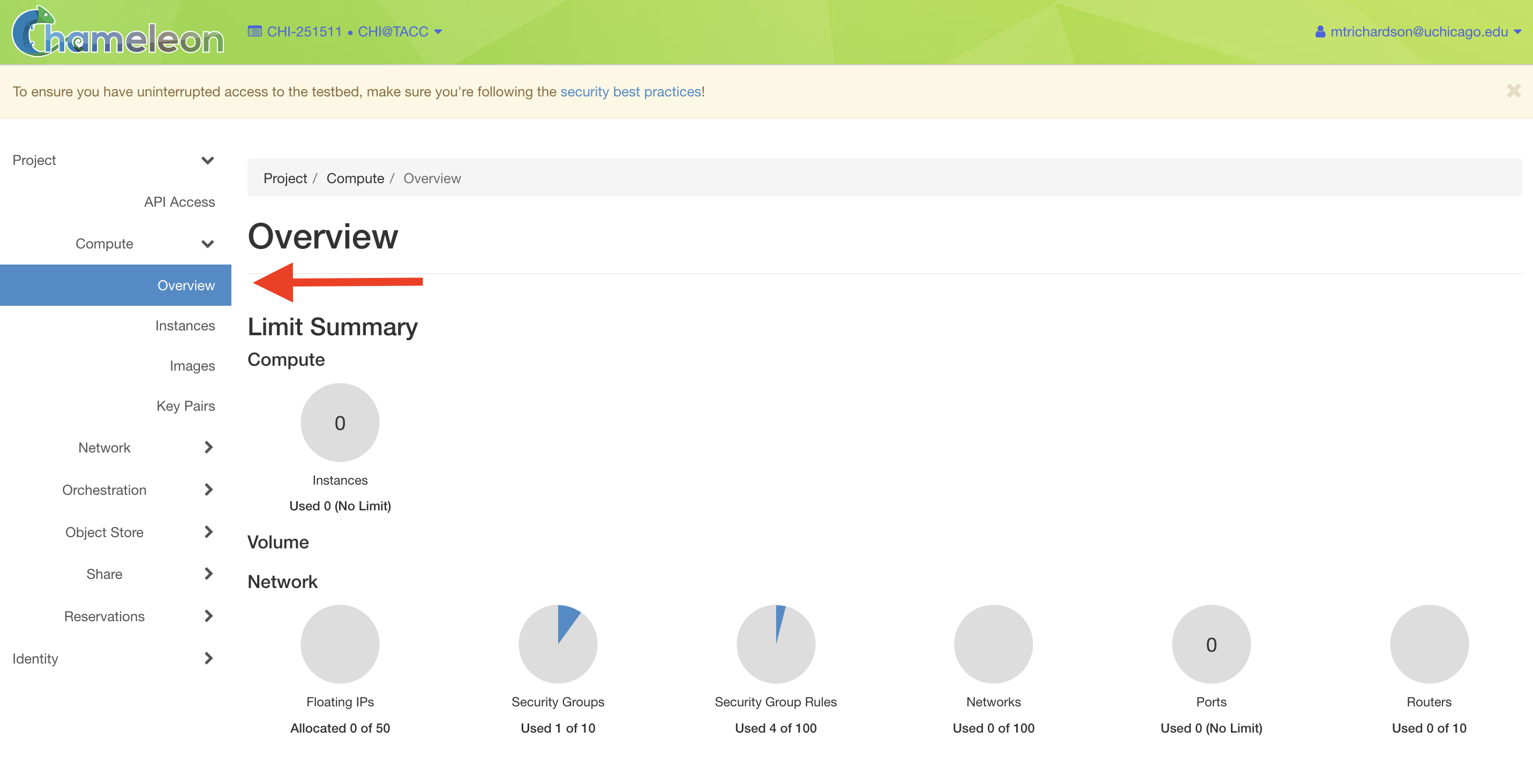

The Chameleon Dashboard's resource usage summary — An overview of your project’s current resource usage for the selected site

Notice that the URL has changed to a specific domain for the testbed site we chose. You can also see which site you are currently on by clicking on the dropdown next to the Chameleon logo at the top left of the window.

../_images/change-site-project-menu.png — Dropdown menu to change your project and site without returning to the portal

This section tells you which project you are currently using and which site. By clicking on the dropdown menu, you can change to another Chameleon site or change to another project.

Important

Projects will only appear as an option in this menu if they have a current active allocation of compute resources.

Step 2: Go to the Host Calendar 

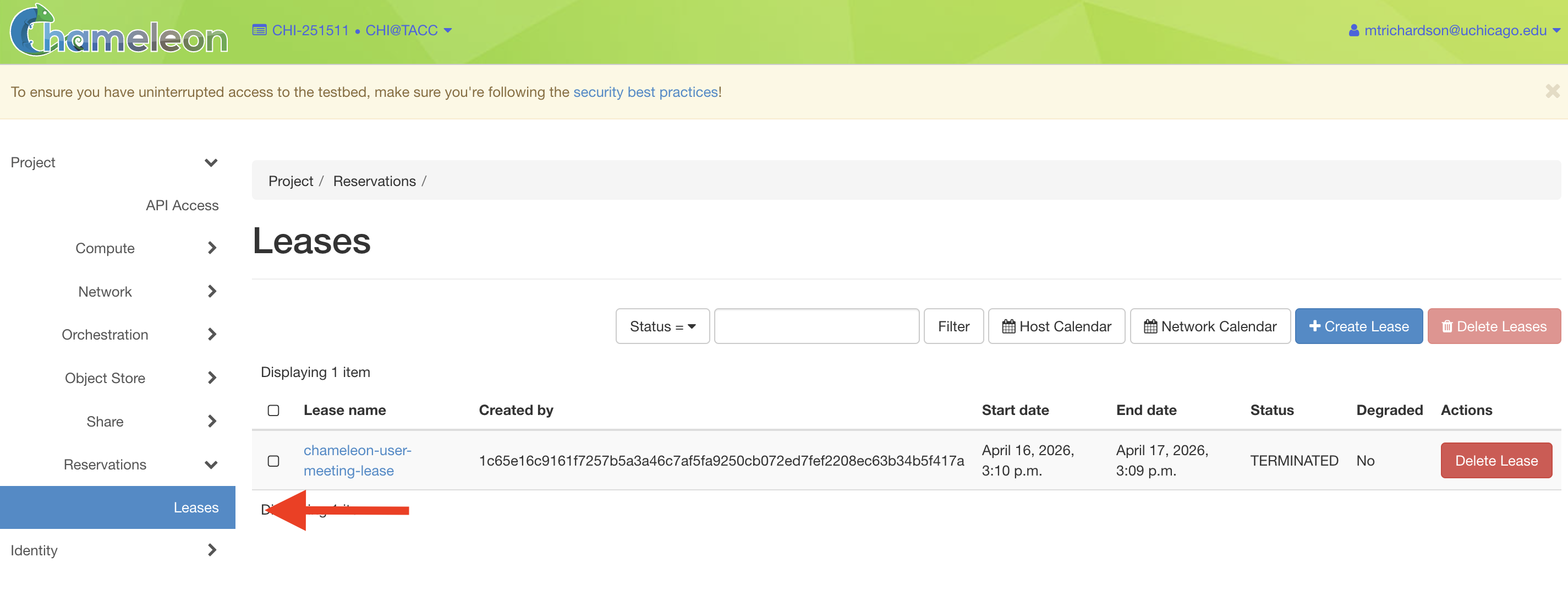

From the overview page, select Reservations in the side navigation bar, then click Leases. On the Leases page, click the Host Calendar button.

The calendar shows a Gantt chart of node availability. Each row represents an individual node. Use the Node Type filter at the top to narrow the view to your desired hardware — in our case, compute_cascadelake_r.

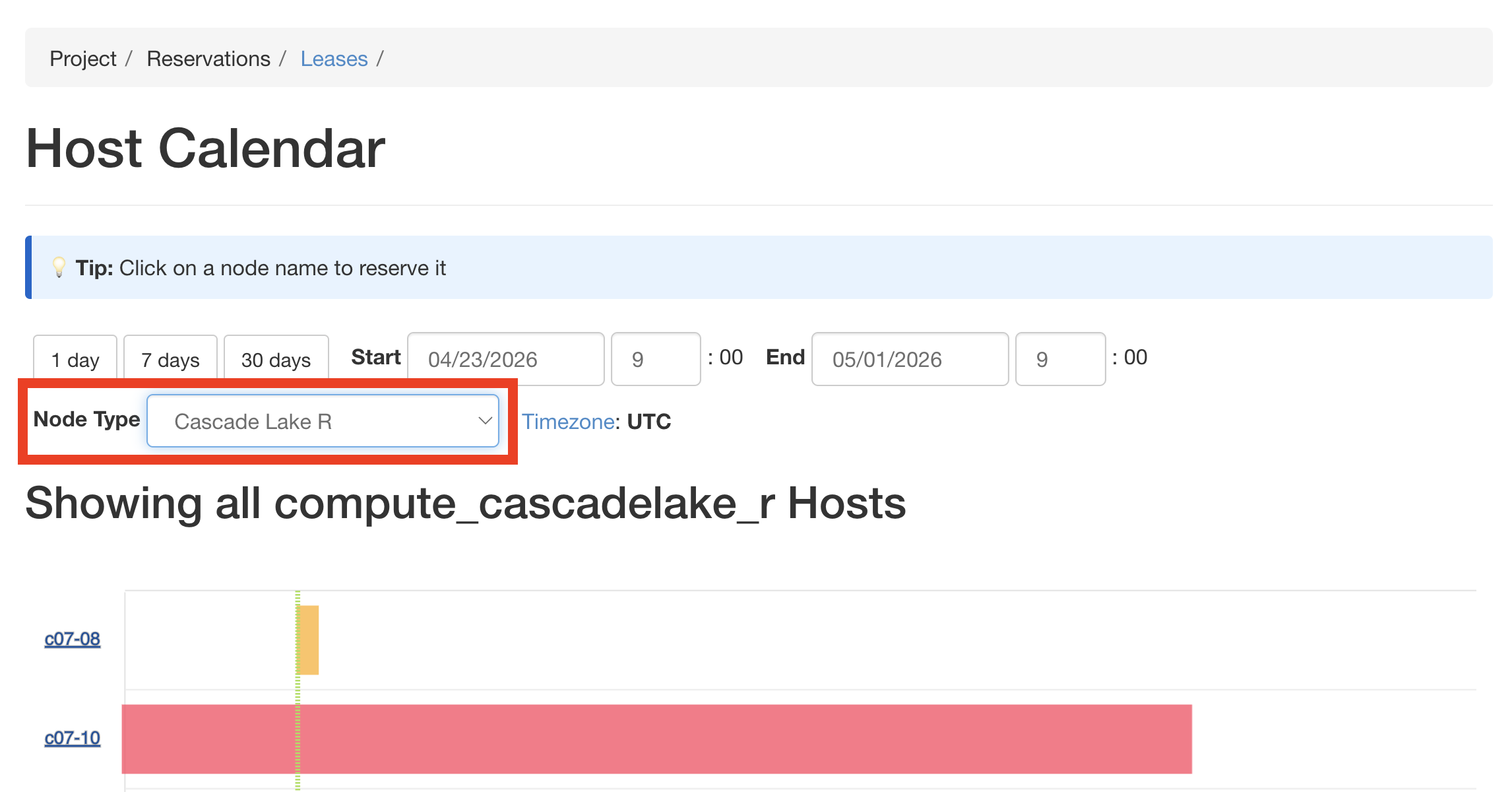

../_images/host-calendar-node-type.png — Filter the calendar by node type to see which nodes are currently free.

Attention

Node types available in the filter are restricted to the site you are currently using. If you don’t see a node type you expect, make sure you are logged in to the correct site.

Step 3: Reserve a Node Directly from the Calendar 

When you spot an available node (a row with no active reservations blocking your desired start time), click on the node name – c07-14 in the example below – associated with that row. This opens the Create Lease dialog with the node already pre-selected for you.

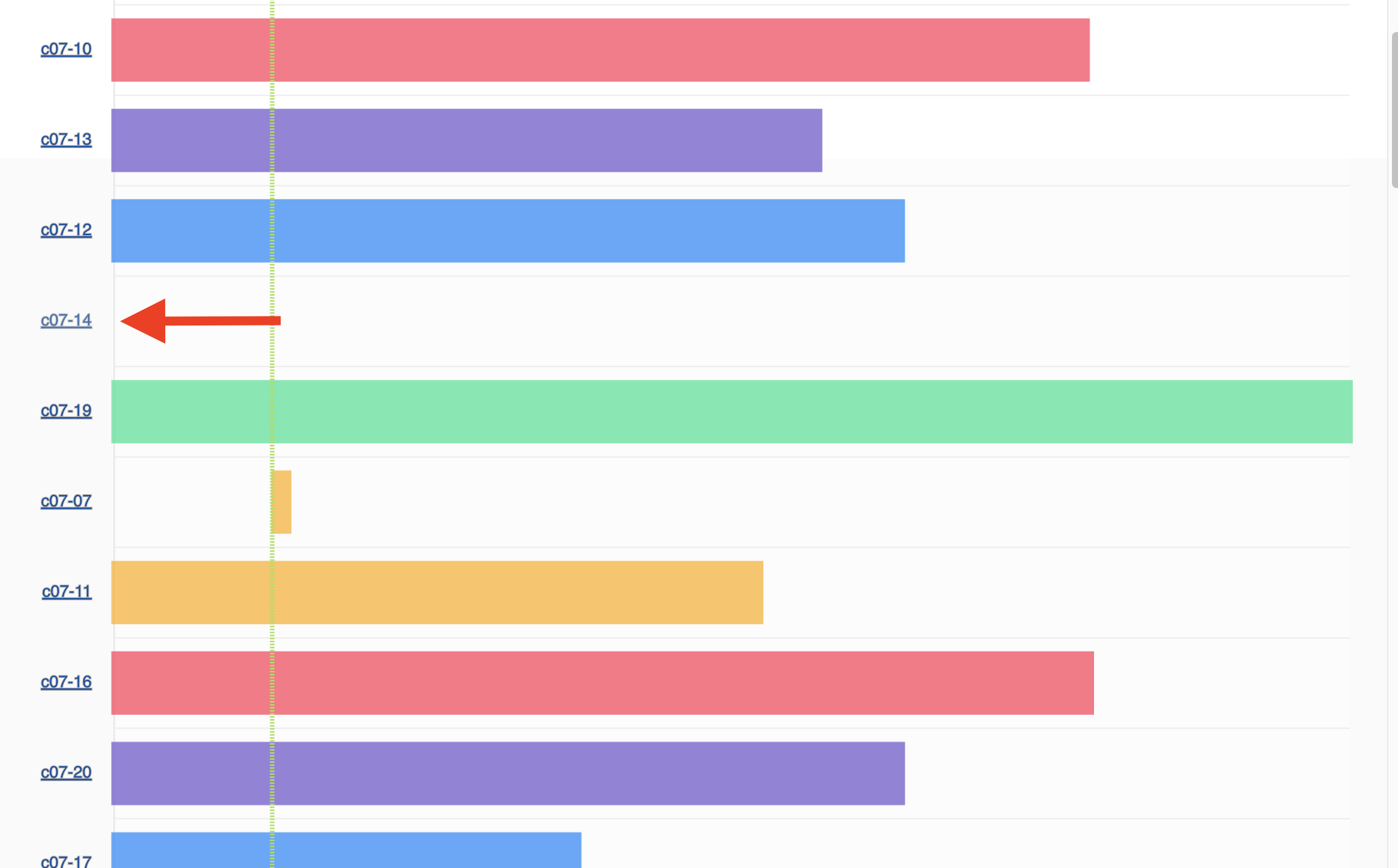

../_images/host-calendar-select-node.png — Click a node row to open the Create Lease dialog with that node pre-filled.

Let’s go through the lease form.

General

Give your lease a name (e.g. my-first-lease). For an on-demand lease you can leave the start time as-is — the form defaults to starting immediately with a one-day duration. To make an advanced reservation, adjust the start date, number of days (maximum 7), and end time.

Hosts

Because we clicked a specific node in the calendar, the Hosts section is already pre-populated with a resource property filter that matches that exact node. You don’t need to change anything here.

In general, this section lets you filter by any resource property — node type, UUID, memory, GPU configuration, and more — to target the hardware you want. If you are creating a lease without using the calendar, this is where you would specify your node properties (e.g. node_type == compute_cascadelake_r) and the number of hosts (minimum and maximum).

Networks

You will almost certainly want to reserve a Floating IP here. Floating IPs are publicly routable addresses used to SSH into your instance from the internet. There is typically no need to reserve more than one per project per site. If no floating IPs are available in the pool, you can allocate one ad-hoc from the Floating IPs dashboard after your lease is active.

Note

Reserving a floating IP in the lease form guarantees you receive one. The pool can occasionally run dry, so reserving upfront is the safer option.

If your experiment requires an isolated private network across multiple nodes, check Reserve Network as well — but for a single-node first experiment, this is not necessary.

Step 4: Submit Your Lease 

Click Create. Your lease will appear on the Leases page with a status of PENDING. Once the scheduler confirms the reservation, it transitions to ACTIVE and you can launch an instance on that node.

Important

Do not stack back-to-back reservations to work around the 7-day limit. Leases found to be doing this may be deleted. See our best practices for guidance on longer reservations.

My First Instance: Launching an Instance 

In the following steps, we will walk through how to configure and launch an instance on hardware we just reserved. In the GUI, this process will feel similar to the process we just followed to create a new lease. You will specify your instance details in a form and submit it to the system. Chameleon will then automatically configure, build, and launch your instance.

Note

Building and launching an instance on bare metal (especially when using beefy appliances and images) can take a long time. After creating your instance, you may need to wait for 10 to 20 minutes before the instance will be running.

To create a new instance, follow the steps below:

Step 1: Go to the Instances Dashboard 

In the sidebar from your site dasboard, click Compute, then click Instances

Step 2: Create a New Instance 

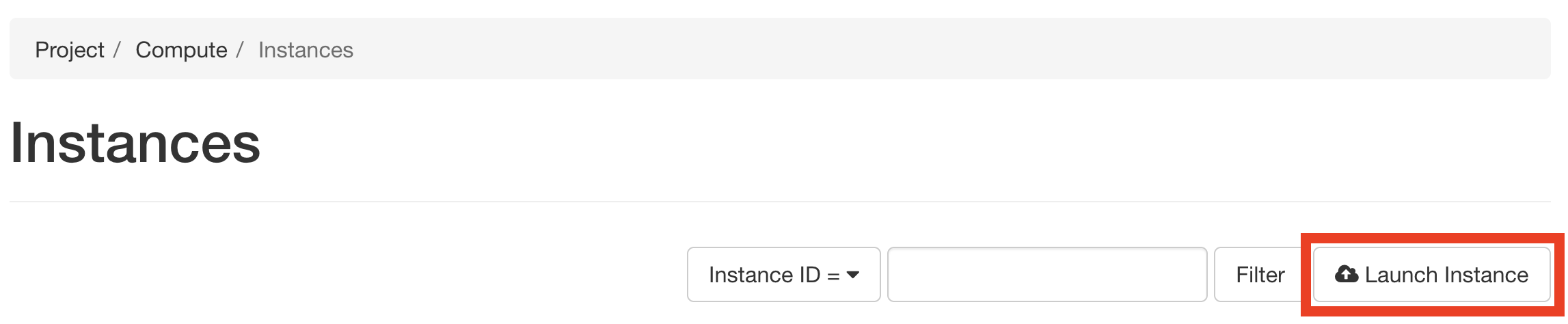

Click on the Launch Instance button in the toolbar and the Launch Instance wizard will load.

Below, we go through each step of the Launch Instance form.

Details

Give your instance a descriptive name (my-first-instance) and a short description (optional). You will also need to specify the lease that you will use for this instance. You can select the reservation that you just created from the dropdown. We can also specify how many instances we want to launch. The default is one and we have one node so we’ll stick with that.

Source

In the next section, we can configure a source that we will use for our instance. This can be an image, a snapshotted image, a volume, or some other appliance. Chameleon staff maintain a set of supported images (identified with a Chameleon badge in the list); these are also browsable via the Appliances Catalog on Trovi. There are also user-uploaded images and appliances. For our demo, we’ll use the supported CC-Ubuntu26.04 image. Scroll down in the list or type the name of the image in the search bar, find the image, and click the up-arrow icon next to it to allocate it as the instance source. See Images for full documentation on images and appliances.

Networks

On the next section, we can allocate a network to provide communication channels for instances in the cloud. For this guide, we’ll use sharednet1, Chameleon’s shared default network — it provides internet connectivity out of the box and is the simplest option for a first experiment.

fabnetv4 is a second shared network specifically for accessing FABRIC testbed resources and cross-site stitching — see External Layer 3 Connectivity for details.

Note

If you plan to run many instances (for example, a class experiment with many students), consider creating a project network (an isolated VLAN) instead of placing all instances on sharednet1. A project network gives your experiment a private broadcast domain while still allowing you to assign floating IPs to individual instances for public access. See Isolated Network VLANs for details.

Key Pairs

../_images/launch-instance-key-pair.png — Add a key pair to the instance.

As a final step to create our instance, we can set up a key pair. We must add a key pair if we want to remotely access the instance after it is running.

Tip

For a comprehensive walkthrough of setting up a new key pair for Chameleon, see reference here.

To add a key pair, we can either add a new one using Create Key Pair and storing the credentials on our local machine, or import an existing key using the Import Key Pair. If you have previously uploaded a key pair to Chameleon, this key pair will appear in the “Available” section below. You can then reuse that key pair.

Step 3: Click Launch 

Finally, we are ready to click Launch Instance. Doing so will take us back to our Instances page, where we should see a new row for the instance that we just created. We can see most of the important information about our instance from here. We can also click on the instance name (like with a lease) to view more details.

The detailed page gives you an overview of the instance. There are also other options to view logs, open a console (once the instance is running), and more.

First Contact: Associating an IP Address & SSH 

Your instance may take approximately ten to fifteen minutes to launch depending on the node type. The launch process includes powering up, loading the operating system over the network, and booting up for the first time on a rack located at one of our hardware sites, depending on where you chose to launch your instance.

Once the instance is running, we will connect to it from our local computer via SSH with the key pair that we added during our configuration step. The steps in the following section will show you how to connect to your instance so you can start working with the node you reserved.

Step 1: Associate an IP 

Before you can access your instance, you need to first assign a floating IP address - an IP address that is accessible over the public Internet. You can do this from the same GUI dashboard where you made your reservation and launched your instance.

To associate an IP address with your instance, follow these steps.

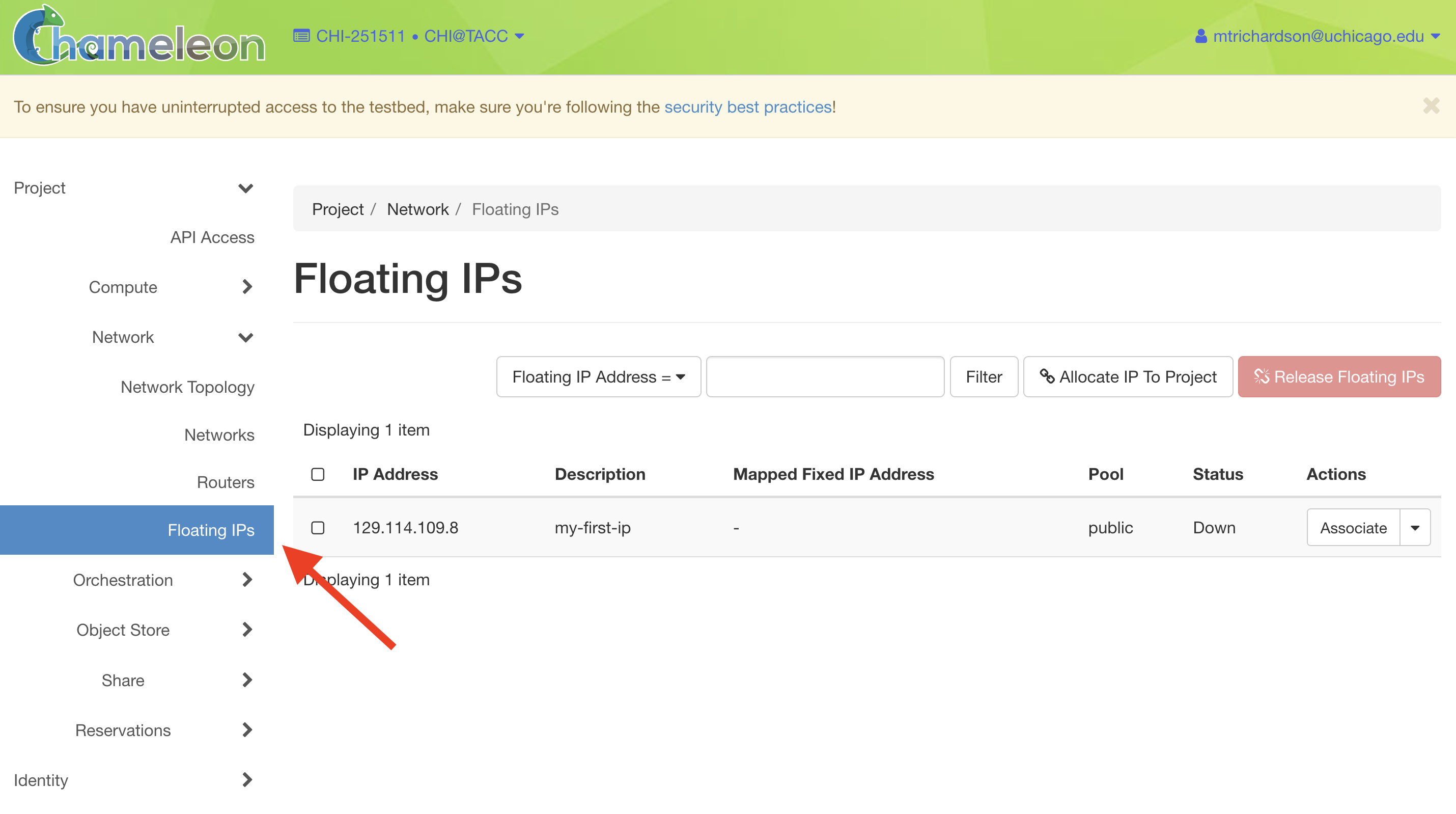

Go to the Floating IP dashboard by clicking on Network and Floating IPs in the sidebar.
Look for a free Floating IP not currently associated to an instance, click the Associate button for the IP. A dialog will load that allows you to assign a publicly accessible IP to your instance. Click the Associate button in the dialog to link the public IP to your instance.

Here you can assign a floating IP address
If you didn’t already have a Floating IP available, you may allocate one to your project by clicking on the Allocate IP to Project button along the top row in the Floating IP dashboard. A new dialog will open for allocating the floating IP.

This dialog allows you to allocate an IP address from Chameleon’s public IP pool

Click the Allocate IP button. The Floating IP dashboard will reload and you should see your new Floating IP appear in the list. You can now go back to step 2.

Step 2: Connect via SSH 

Once your instance is running and has a floating IP associated, open a terminal and connect using the private key you added during the launch step. All Chameleon instances use cc as the default login username.

Note

The instructions below assume macOS or Linux. Windows users can follow our YouTube video on logging in via SSH on Windows.

ssh -i /path/to/your/private/key cc@<your-floating-ip>

Replace /path/to/your/private/key with the path to your private key file and <your-floating-ip> with the floating IP you associated in the previous step.

Tip

New to SSH keys? See this SSH key guide for a walkthrough on generating and using key pairs.

Once connected, your terminal prompt changes to show the instance hostname, confirming you are now running commands directly on the bare metal node:

cc@my-first-instance:~$ lscpu
Architecture:        x86_64
CPU(s):              96
Model name:          Intel(R) Xeon(R) Gold 6240R CPU @ 2.40GHz
Thread(s) per core:  2
Core(s) per socket:  24
Socket(s):           2

Congratulations! You just created your first Chameleon instance!

What’s Next?

Now that you’ve reserved a node, launched an instance, and connected via SSH, you’re ready to start running experiments on Chameleon.

Go programmatic: Our JupyterHub and python-chi guide walks through the same workflow using Chameleon’s Python library inside a Jupyter Notebook — no GUI required. Prefer the command line? See the CLI guide for scripting and automation via the OpenStack client.
Explore more hardware: Browse Hardware Discovery and the reservations guide to learn about advanced reservation options.
Browse experiment templates: Check out tutorials on Trovi for ready-made experiment patterns you can launch and adapt.
Watch and learn: Visit our webinar page for live tutorials and recorded walkthroughs.

If you have questions, see our documentation on getting help. For feedback on this guide, reach out at contact@chameleoncloud.org.
